Plant Trailers

The Ifor Williams plant trailer range is designed to be tough and durable for harsh working conditions. Trusted on construction sites around the world, our plant trailer range has been working hard to transport machinery and equipment safely and securely for trades and hire firms since the early 1980’s.

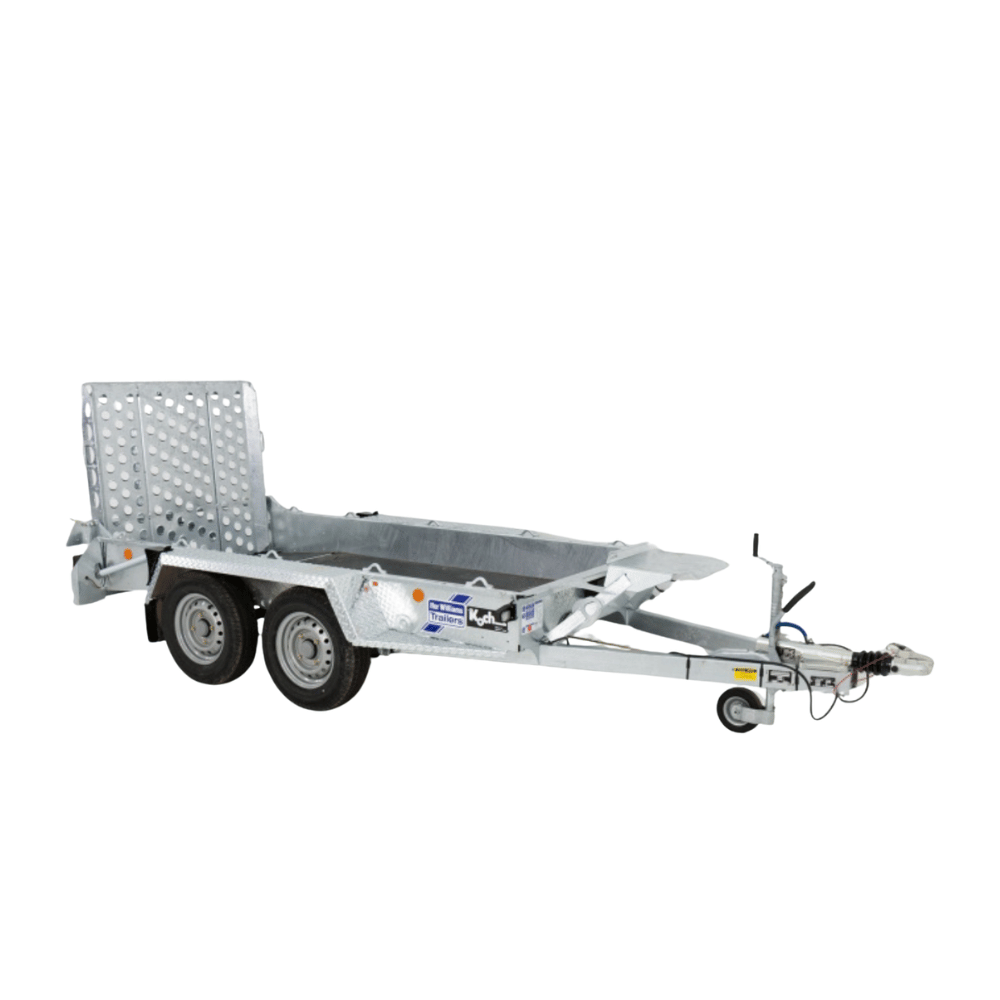

GH Plant

From $9,190 tow away

The Ifor Williams GH trailer range is one of the most robust and reliable plant trailers available with class leading payloads.

Our GH models comprise of fully welded galvanized steel for corrosion resistance, with the exclusive Ifor Williams Paraflex™ leaf spring suspension and a robust chassis designed to thrive in harsh conditions.

Available in a range of sizes, with a heavy duty anti-slip 24mm resin coated plywood platform fitted as standard, and steel floor options available.

All GH trailers have a heavy-duty jockey wheel & bucket rest, LED lighting, and multiple lashing points for secure load tie-down.

Model	Tyres	Gross Weight	Unladen Weight	Internal Length	Internal Width	Overall Length	Overall Width
GH64 (Single Axle)	195/55R10C	1500kg	270kg	1.88m/6'1"	1.23m/4'	3.66m/12'	1.733m/5'8"
GH94 (Tandem Axle)	165R13C	2700kg	530kg	2.79m/9'1"	1.31m/4'3"	4.617m/15'1"	1.778m/5'10"
GH1054 (Tandem Axle)	185/70R13C	3500kg	660kg	3.04m/9'11"	1.62m/5'4"	5.009m/16'5"	2.090m/6'10"
GH106 (Tandem Axle)	185/70R13C	3500kg	710kg	3.045m/9'11"	1.840m/6'	4.956m/16'3"	2.308m/7'6"
GH126 (Tandem Axle)	185/70R13C	3500kg	765kg	3.660m/12'	1.840m/6'	5.632m/18'5"	2.308m/7'6"

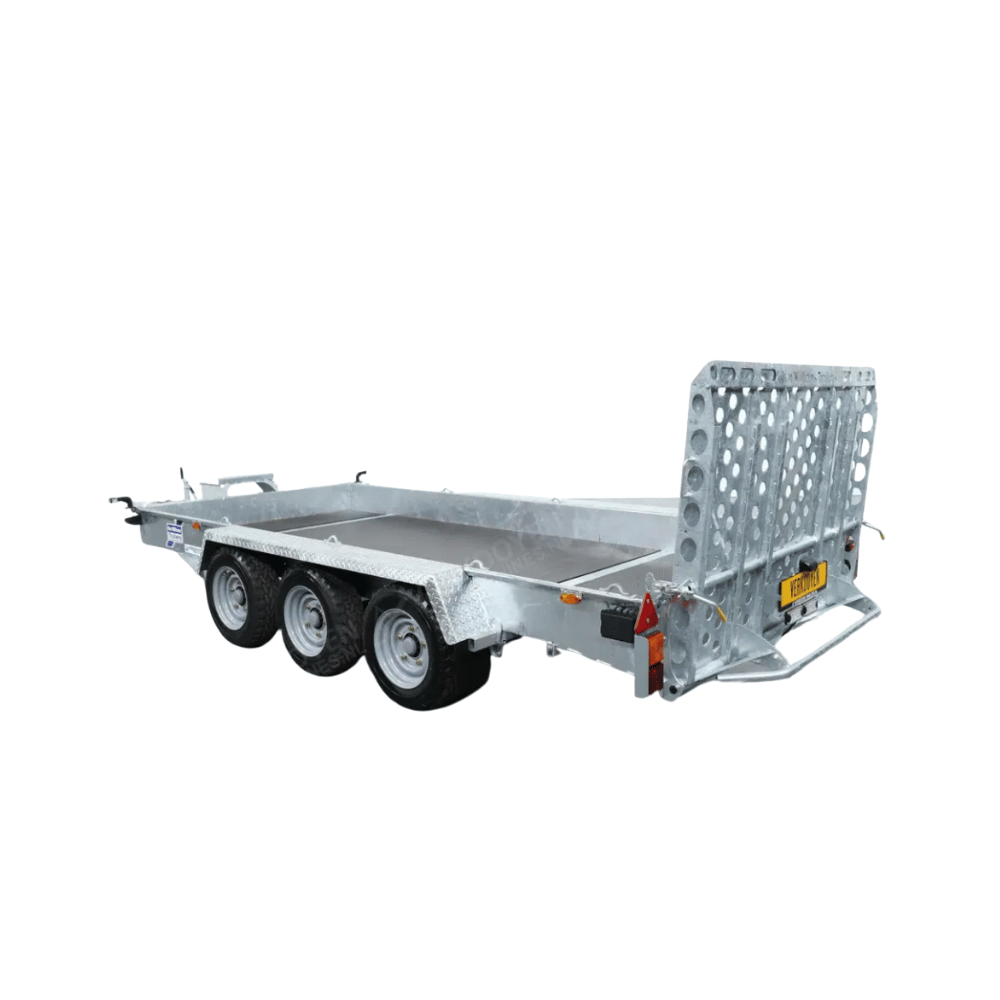

GH146T (Tri-Axle)	185/70R13C	3500kg	910kg	4.285m/14'	1.840m/6'	6.162m/20'2"	2.308m/7'6"

Select Trailer Model

Summary

Select a trailer model to begin

We offer affordable finance options. Get in touch with the team today, we're here to help. Contact Us

Finance is provided by UDC Finance Limited. Approvals are subject to responsible lending enquiries. UDC's loan eligibility criteria, fees, terms and conditions apply. For more information on UDC's Consumer Credit Contracts, Rates & Fees and Terms & Conditions please click here.

Key Features

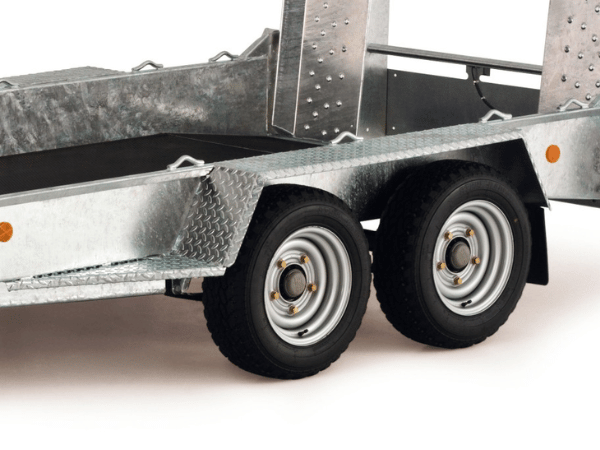

GH Treadplate Mudguards

With a heavy duty trailer you need heavy duty mudguards, with these Treadplate Mudguards you have easy access to step out of the plant or equipment when loaded.

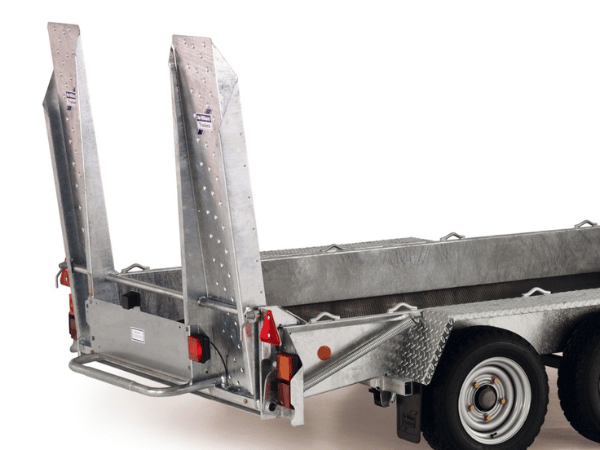

GH Beavertail

Beavertail provides a reduced loading angle of 13° during loading and the ramps are bevelled to guide the tracks or wheels of plant being loaded. These are adjustable for width when deployed, for added versatility.

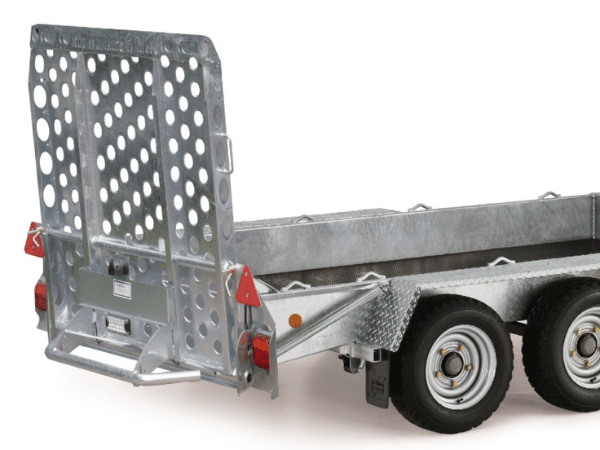

Optional Full Width Ramp

The full-width ramp is a versatile option designed to handle a wide range of loading needs. At 1.2m in height, it is designed to maximise grip during loading. Constructed from galvanised steel, it offers exceptional durability. Bevelled sides help guide tracks or wheels onto the trailer bed with ease, while the drop-in registration plate holder ensures compatibility with various towing vehicles.

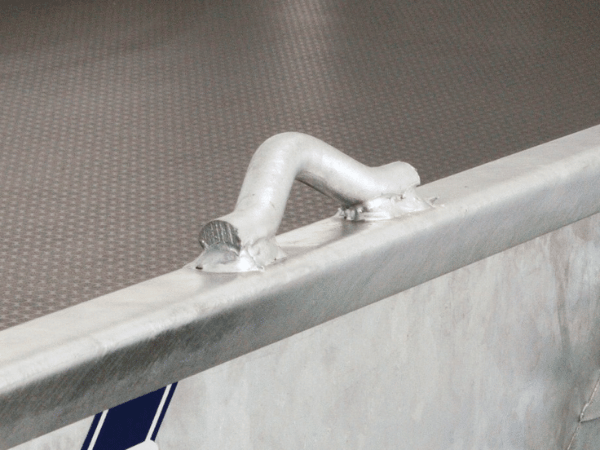

Lashing Points

Heavy duty lashing points which are all Certified by DEKRA to EN 12640 for peace of mind.

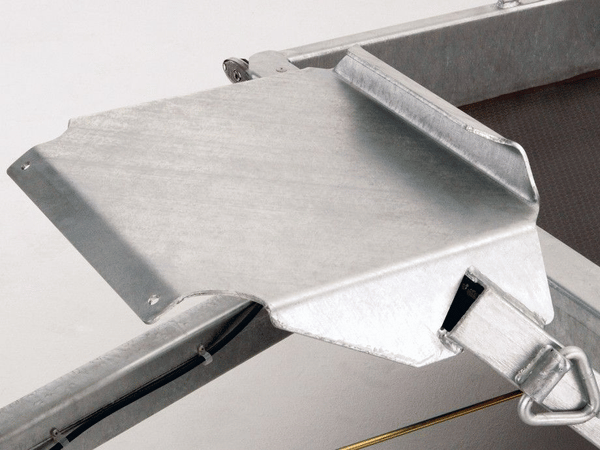

Bucket Rest

The Bucket Rest allows you to park the Excavator in the middle of the trailer as the Boom is raised to allow the Bucket to sit on our Integrated Bucket Rest. This ensures that the trailer is loaded correctly.

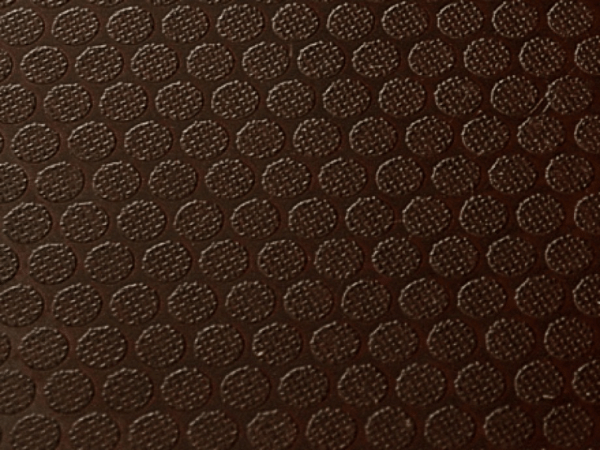

Resin Coated Plywood Platform

Our Plant Trailers come fitted with a Heavy Duty, Resin Coated Plywood Floor. This offers excellent resistance to damage, whilst offering a non-slip surface for added protection. the edges of the Floor Panels are also treated to reduce the ingress of water, offering a long lasting solution.

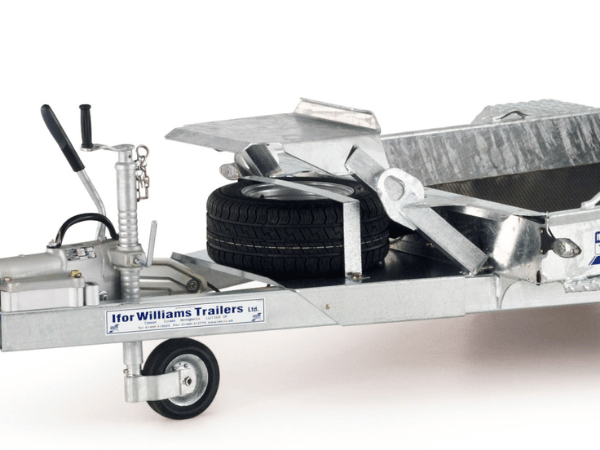

Spare Wheel

If you want extra peace of mind with your trailer or you regularly travel long distances with your GH, then why not have the addition of a Spare Wheel Carrier and Spare Wheel to get yourself back on the road quickly.
